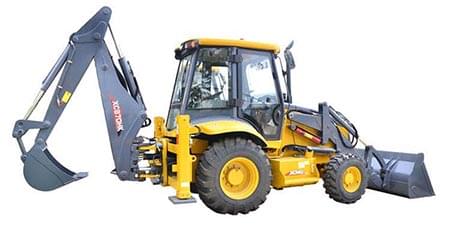

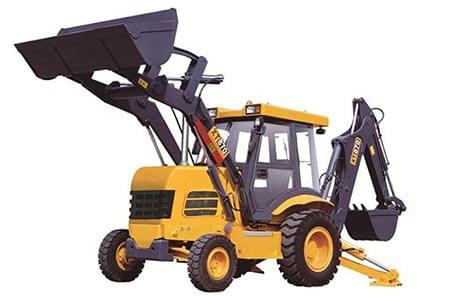

XCMG XC870K 2.5 ton new backhoe China loader mini tractor with front end loader and backhoe

1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.

2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.

3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.

4,The advanced structure and hinge points on the digging end and the industry's largest rotating angle of the bucket ensure strong soil holding capacity.

Environmental-friendliness

The double pump confluence system with unloading function can automatically or manually switch over the individual pump based on the working condition and unload the high pressure by auxiliary pump, featuring high intelligence and energy-saving.

The XCMG's independently developed load-sensing system features smooth digging and loading combination motions, low motion changeover impact, and high efficiency and energy-saving.

During the digging and loading combination operations, the engine power to the drive system can be easily cut off so that all power is supplied to the hydraulic system to improve the digging and loading efficiency.

The machine automatically switches to two-wheel drive mode while traveling in gear IV to eliminate the parasitic power loss.


Description

Unit

Parameter value

Chassis type


integrated

Drive style


4 drive/2 drive

Digging working device


middle

Outline dimensions(L×W×H)

mm

7440×2350×3450

Total weight

kg

7600

Max. travel speed

km/h

≥40

Wheelbase

mm

2180


Engine

Power

kW

82

Supplier

tier 3 tier 2 tier 3 tier 2





Loading device

Bucket capacity

1

Rated load

kg

2500

Max. breakout

kN

66

Max. discharge height

mm

2770

Max. discharge distance

mm

755

System pressure

Mpa

24




Digging device

Bucket capacity

0.3

Max. digging radius

mm

5460

Max. digging depth

mm

4425

Max. digging force

kN

63

System pressure

Mpa

24
