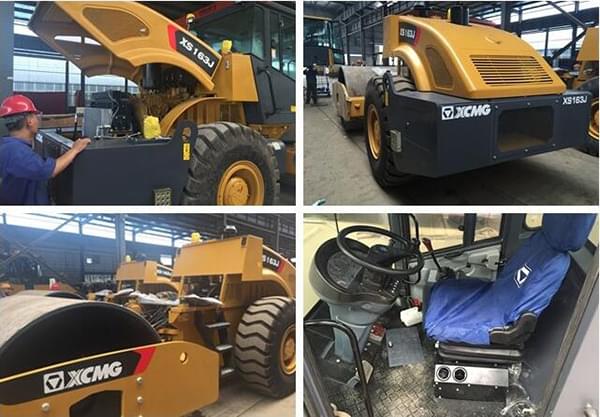

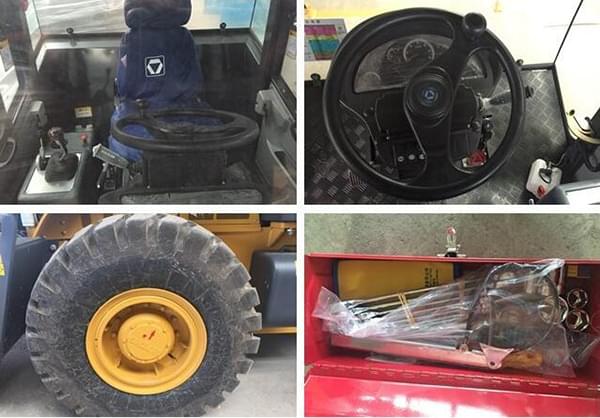

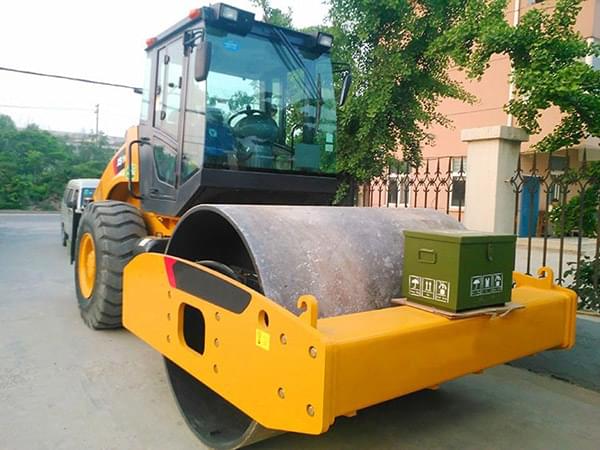

XCMG official 16 ton XS163J vibratory road roller compactor.

XCMG roller compactor XS163J has a very high static line load and exciting force and is suitable to the compaction operation of pebbles, sandy soils, moraine soil, blasting rock and clayey soil, etc.

And XCMG roller compactor XS163J is also suitable to the compaction of concrete and stabilized soil base materials in various large projects; Thus, XCMG roller compactor XS163J is a kind of important compaction equipment in the construction of large projects such as the expressway, railway, mine, port, etc.



Performance Characteristics:

1. XCMG roller compactor XS163J Use the H-series, water cooling, low-speed diesel engine manufactured by Shanghai.

2. Adopt closed hydraulic drive system ensure better drive performance and gradeability.

3. XCMG roller compactor XS163J Use the mechanical gear box with synchro mesh unit to realize convenient operation.

4. Main clutch uses the heavy-duty special with a reliable performance and good maintainability.

5. XCMG roller compactor XS163J can meet the requirements of different working conditions.


Item

Unit

XS163J

Service mass

kg

16000

Distributed mass of driving wheel

kg

8000

Distributed mass of vibration wheel

kg

8000

Static line load

N/cm

376

Vibration frequency

Hz

28/33

Theoretical amplitude

mm

1.9/0.95

Exciting force

kN

290/200

Range of speed

Forward

I

km/h

2.85

II

km/h

5.08

III

km/h

11.17

Backward

I

km/h

2.88

II

km/h

5.02

Wheel base

mm

3076

Compaction width

mm

2130

Theoretical gradeability

%

30

Minimum turn radius

mm

6800

Diameter of vibration wheel

mm

1523

Minimum ground clearance

mm

440

Engine

Model


SC4H140.1G2

Rated speed

r/min

1800

Rated power

kW

103

Overall dimension (length x width x height)

mm

6150*2300*3200
