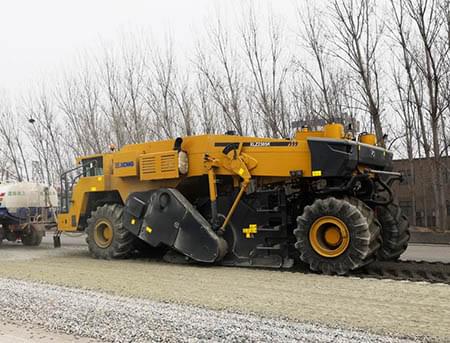

XCMG Road Reclaimers XLZ2305K Road Cold Recycler
XLZ2305K road reclaimer is a set of multi-functional road maintenance equipment. It is mainly used for upgrading and reconstruction of old asphalt pavement. It is mainly used for mixing fillers, cement, limes and other objects with natural soil, so as to improve mechanical and physical properties of soil. It can be also used for milling damaged asphalt or asphalt concrete pavement with the thickness of 250mm and below.

Performance Characteristics:
* The milling width of the road reclaimer is 2300mm; generally, the maximum milling depth is 430mm.
* Milling rotor will be driven by two groups of (13) belts of automatic tightening devices, quick-change tool apron rotor getting Xugong patent technology guarantee cutter can be installed and disassembled conveniently, so a worn cutter can be quickly changed, thereby greatly lowering the cutter changing labor intensity, extending the effective working time of the machine and improving working efficiency.
* Running system has 4 speed governing gears. It has four wheels for running and steering; their low-pressure wide base big pattern tyres can run stably, with big adhesive force.
* Sprinkling system has water spraying function; and it can manually and intelligently control the medium spraying volume.
* Automatic depth control: built-in sensor of hydraulic cylinder is used for detection, and milling depth can be displayed on display.
* The intelligent control system can achieve on-line display, fault diagnosis, fault alarm, maintenance hints and other advanced functions in working mode and walking mode; at the same time, various data can be directly read through display.


Item
Unit
XLZ2305K
Milling width
mm
2300
Maximum milling depth
mm
430
Cutter spacing
mm
30×2
Diameter of milling wheel (with cutter)
mm
1480
Manufacturer

Perkins
Cooling type

Water-cooling
Model

2806D-E18TTA
The quantity of cylinder stator

6
Rated power
kW
571
Engine speed
rpm
2100
Oil consumption: Full load
kg/h
119.3
Working speed
km/h
0-3
Traveling speed
km/h
0-12
Theoretical gradeability (working gear)
%
50
Ground clearance
mm
350
Front axle load
195kg
21000
Rear axle load
kg
14000
Shipping weight
kg
33500
Fuel tank
L
1500
Hydraulic oil tank
L
320
Water tank
L
200
Voltage of electric system
V
24
Machinery(length*width*height)
mm
9340x3218x3197
