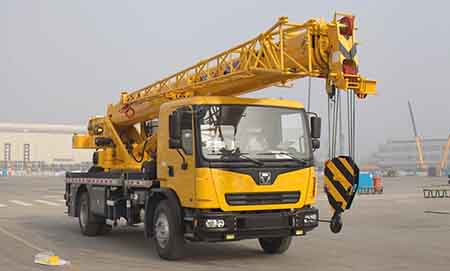

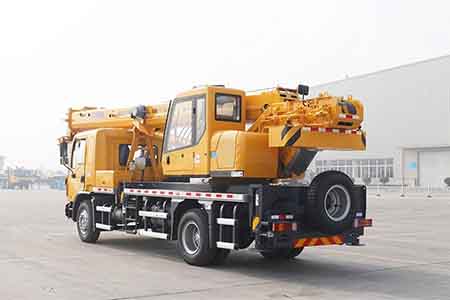

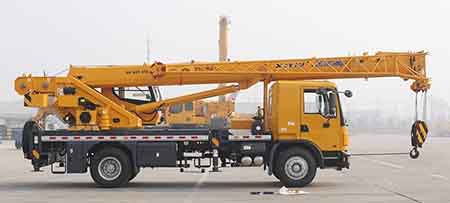

XCMG  XCT12L4 12 ton new small mobile truck crane

XCT12L4 Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.


Advantages and highlights:

* Super lifting performance

4-section boom of 32m with eight side profile is the longest of the same class in the industry; the max. parts of line is 6 for the main hook block. The performance is 10% higher than that of the competitors.


* New energy-saving hydraulic system

The min. stable slewing speed is 0.1°/s. The min. stable lifting speed (drum) is 2.5m/min.
Precise and safe lifting movements can be realized.


* Drive train

Weichai/Shanghai Nation V diesel engine, rated power 162kw/170kw, max. torque 850N.m900N.m;Weichai/Shanghai Nation III diesel engine, rated power 176kw/170kw, max. torque 900N.m900N.m.

Max. travel speed 90Km/h, Max. grade ability 41%


* Energy-saving power transmission system

With new energy-saving motor, the novel power platform is centered with one-stage retarding axle and equipped with full synchronizer containing transmission with over speed gear. Strong drive performance and load bearing capacity contribute to perfect combination of high power performance and low oil consumption, which reduces the general oil consumption over 10% and exceeds competitors more than 12% at the max. speed.


Category
Item
Unit
XCT12L4
Dimension
Overall length
mm
10900
Overall width
mm
2500
Overall height
mm
3550
Weight
Total weight in travel
kg
16000
Power
Engine model

SC7H230Q4/WP6.220E40
Engine rated power
kW/(r/min)
170/2300 162/2300
Engine rated torque
N.m/(r/min)
900/1400 850/1400-1600
Travel
Max. travel speed
km/h
90
Min. turning diameter
m
18
Min. ground clearance
mm
250
Approach angle
°
21
Departure angle
°
13
Max. grade ability
%
41
Fuel consumption for 100km
L
25
Main performance
Max. rated total lifting capacity
t
12
Min. rated working radius
m
3
Turning radius at turntable tail
m
2.57
Max. lifting torque
kN.m
482.5
Base boom
m
9.5
Max.main boom
m
30.9
Max.main boom+jib
m
38.1
Turning radius at turntable tail
Counterweight
mm
2570
Auxiliary winch
mm
2910
Max. load moment
Base boom
t.m
48.25
Fully-extended boom
t.m
27.6
Outrigger span(fully-extended)
Longitudinal
m
4.57
Hoist height
Lateral
m
5.5
Base boom
m
9.5
Fully-extended boom
m
30.9
Boom length
Fully-extended boom + Jib
m
38.1
Base boom
m
9.45
Fully-extended boom
m
30.5
Fully-extended boom + Jib
m
30.5+7
