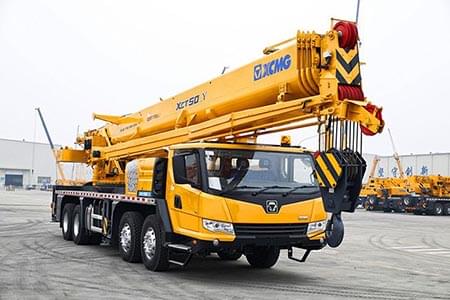

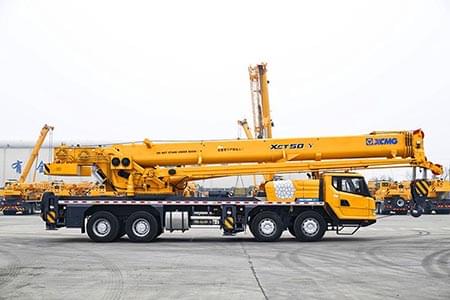

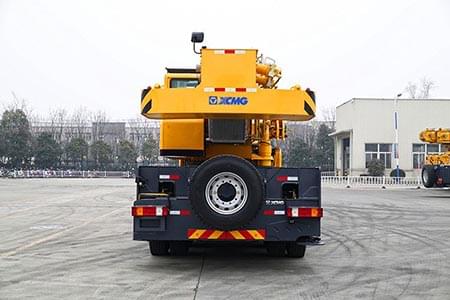

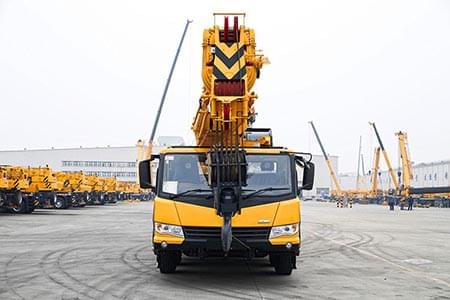

XCMG Official 50 Ton Hydraulic Crane Truck XCT50_Y China New Hydraulic Crane.

XCT50_Y Truck crane is widely used for the lifting operations in general engineering projects, such as construction site, urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex working environments.



Performance Characteristics:

* 5-section boom of 44m with U-type profile is adopted; the max. lifting load is 50 t; the max. lifting height is 59.5 m; all capacities take the lead in its class.

* The machine is designed to be high temperature resistance, so it can continuously work without downtime in ambient temperature of 45℃. The whole vehicle is also waterproof and corrosion resistant. The reliability and service life of parts are greatly improved.

* Abundant configurations of operating methods and jib types can meet the requirements of different customers.


Item

Unit

Parameter

Dimensions (length x width x height)

mm

14045×2790×3615

Total vehicle mass in travel configuration

kg

40100

Axle load

1st and 2nd axle

kg

8500

3rd and 4th axle

kg

11550

Engine rated power/rpm

kW/(r/min)

247/2200

Max. output torque/rpm

N.m/(r/min)

1350/1100-1600

Max. travel speed

km/h

90

Min. turning diameter

m

24

Min. ground clearance

mm

260

Approach angle

°

19

Departure angle

°

13

Max. grade ability

%

40

Fuel consumption per 100 km

L

38

Max. total rated lifting capacity

t

50

Min rated working radius

m

3

Max. load moment

Base boom

kN.m

2009

Fully-extended boom

kN.m

933

Outrigger span

Longitudinal

m

6.1

Lateral

m

7.1

Hoist height

Base boom

m

11.2

Fully-extended boom

m

43.3

Boom length

Base boom

m

11.4

Fully-extended boom

m

43.5

Jib offset angle

°

0, 15, 30

Boom raising time

s

≤40

Boom fully extending time

s

≤90

Hoistin
Hoisting speed (single line, 4th layer, no load)

Main winch

m/min

≥128

Auxiliary winch

m/min

≥128
