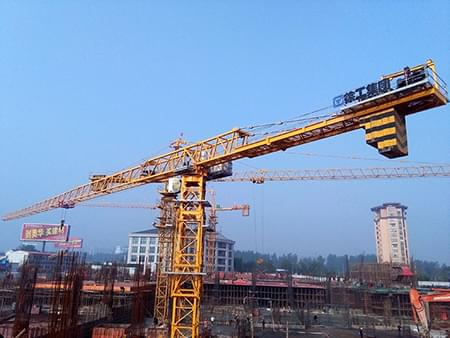

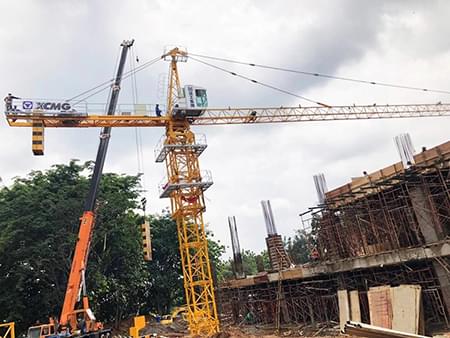

XCMG 12 ton Small Construction Tower Crane XGT7020-12
Guided by the golden standard of "Leading technology, everlasting product", focus on creating XCMG tower crane product highlights of “High performance, high safety, high reliability” and “Intelligent, frequency conversion, green, humanization”.

Performance Characteristics:
*  The most secure high-end construction lifting machinery benchmark.
*  The lifting performance is better than competitors.
*  New XGT-AMCS intelligent management system.
*  With the speed control function, the position accuracy is up to millimeter; ensure that the hoisting is smooth and accurate.
*  Quick disassembly, easy and efficient, the platforms and booms are quick-assembly structures, which save 3.2 hours for installation.


Type

XGT7020-12

Basic height

60M

Max height

240M

Length

70/65/60/55/50/45/40/35/30

Max load

12t

Tip load

2/2.5/3.1/3.9/4.7/5.6/6.3/7.2/8.5

Section size

2000×2000×3000


Items

Mechanism

Speed(m/min)

Rope capacity

Motor(Kw)

Hoist mechanism

55JLF30A

2 multiplying power

0-90

695M

55



4 multiplying power

0-45

>695M*


Trolleying mechanism

6JXF5

0-63m/min

5.5

Slewing mechanism

JH12CT6

0-0.66r/min

2×7.5

Travelling

RT

0-25m/min

4×4

Main Supply

380V(±10%)/50Hz*

Gross Power(Excluding climbing and travelling):75.5Kw
