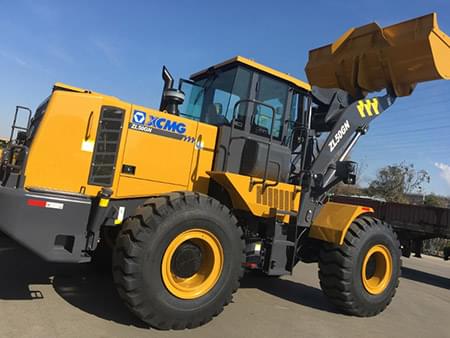

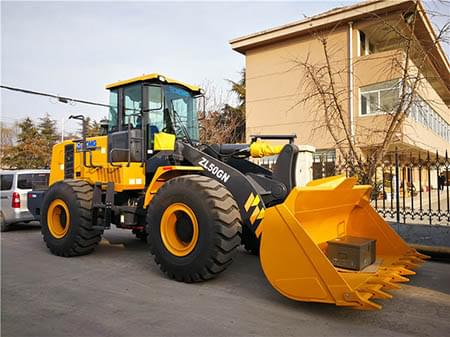

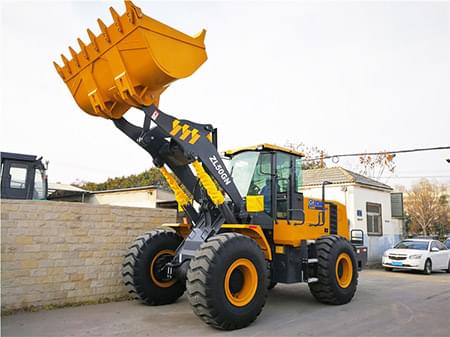

XCMG wheel loader ZL50GN 5 ton loader.

In recent years, XCMG made numerous breakthroughs in loader technology development and continuously make history in loader industry. Implementation of “service throughout full life cycle" brings about trouble-free lifetime experience! Marketing service network spread around the world covers extensive areas.

Product Overview:

XCMG wheel loader ZL50GN is the most popular model of China 5t wheel loader, Now ZL50GN is upgrading to new model ZL50GV equipped with EURO III engine with electric injector, new model will have high performance.

ZL50GN wheel loader is the latest cross-generation product developed ,the first-choice equipment for the production organization the fields of ports, mines, engineering constructions, and logistics.


Performance Highlights:

1.Heavy load for the rocky condition; the working device and front and rear frame feature thick board of high strength, reasonable distribution and strong carrying capacity.

2.The large rock bucket with capacity of 2.5m³ is improved in terms of the work efficiency and adaptation. The bucket teeth adopt the structure of toolholder and sleeve. The cutting blade and bucket edge are equipped with protection device, featuring excellent abrasion resistance and shock resistance.

3.The thickness of the front frame lug and baseboard is 70mm, and the thickness of the up and down articulated board is 30mm. The machine is superior among the products of same kind in terms of the structural strength and carrying capacity.

4.160kN breakout force handle all kinds of materials with ease,≥3.5m high dumping capacity handle the severe conditions with ease.


Optional parts:

Grasping grass pliers / Sliding fork / Standard bucket/ Side dumping / Light material Blade bucket 3.5m3/4m3/4.5m3,2.5m3 Mine bucket.


Overall dimensions

Overall length (bucket on the ground)

8165 mm

Overall width

2850 mm

Bucket width

3016 mm

Overall height

3485 mm

Wheel base

3300 mm

Tread

2250 mm

Min. ground clearance

450 mm




Specification

Rated capacity

5000 kg



Bucket volume

2.5 m3 (Bucket for rock)

3 m3 (Standard bucket)

3.5 m3 (Bucket for light material)

4 m3 (Bucket for light material)

Operating weight


17500kg±300kg







Traveling speeds

Forward/Reverse

0~11.5/0~16.5 km/h

Forward /Reverse


0~38 km/h

Forward /Reverse

Forward /Reverse

Max. tractive force

165±5kN

Max. climbing gradient

30 º

Max. dumping angle

45 º

Max. dumping height

≥3100 mm (main cutting edge)

Dumping reach

≥1100 mm (main cutting edge)

Dumping angle of bucket

≥45 º




Max. Breakout force

Breakout force of bucket

170 KN

Breakout force of lifting

134 KN

Maximum digging depth

40 mm (the bucket bottom is level)

Lifting time of boom

≤6 s

Total cycling time

≤11 s



Min. Turning radius

Outside of the bucket

7300 mm

Center of the tyre

6400 mm

Turning angle of the chassis

35 º

Oscillating angle of the rear axle

±12 º
