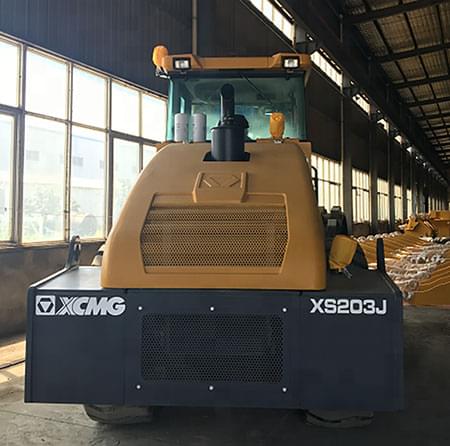

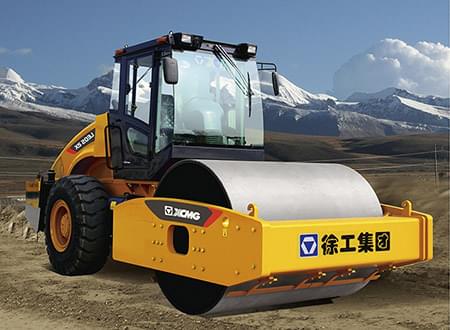

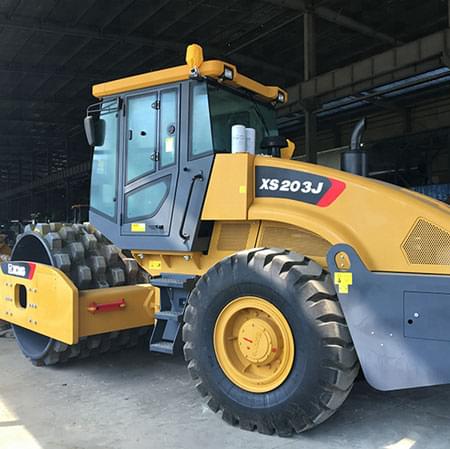

XCMG 20 ton single drum vibratory roller compactor XS203J road roller machine.

The XS203J is a super heavy-duty vibratory roller with mechanical drive designed and built to offer unrivaled performance. Representing XCMG's new generation of mechanical drive vibratory rollers, the machine sets new standards for operation, propulsion, compaction, reliability and serviceability in the industry.


Excellent Powertrain

The six-cylinder, direct injection, water-cooled, turbocharged Shangchai SC8D175.2G2B1 engine that offers high power reserve, together with the electrically controlled power box and the optional drive axle with NO-SPIN function supplies stable power transmission. The power system of XS202J can play an optimal traction performance in any cases.


Outstanding Compaction

Dual vibration frequencies and dual amplitudes satisfy different jobsite requirements. Imported heavy-duty piston pumps and motors form a closed circuit to provide enhanced durability and reliability, ensuring uniform compaction.


Largest diameter drum and highest static linear load of its kind in china coupled with optimized drum structure and vibration parameters work together for outstanding compaction result and great productivity.


Model

Unit

XS203J

Operating weight

kg

20000

Load applied on front drum

kg

10000

Static linear load

N/cm

470

Travel Speed

km/h

3-9.4

Theoretical gradeability

%

30

Min. outer turning radius

mm

6500

Steering angle

°

±33

Oscillating angle

°

±10

Vibration frequency

Hz

33/28

Nominal amplitude (high/low)

mm

1.9/0.95

Exciting force (high/low)

kN

353/245

Drum width

mm

2130

Drum Diemeter

mm

1600

Engine model


Shanghai Diesel Engine SC8D175.2G2B1

Rater Power

kW

128

Engine oil consumption

g/kW.h

205

Hydraulic tank capacity

L

170

Fuel tank capacity

L

310

Dimension(L*W*H)

mm

6220*2430*3200
