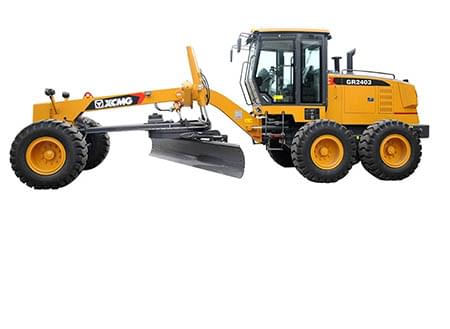

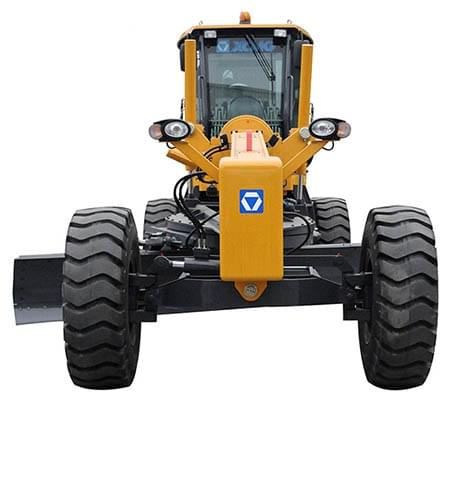

  • XCMG 240HP GR2403 motor graders equipment china rc tractor road wheel motor grader
  • Product category : Motor Grader
  • Brand : XCMG
  • Product origin : CHINA
  • Delivery time : 1-90DAYS
  • Supply capacity : 1-500UNITS
  • Email : sales@xzunique.com
  • Send Inquiry Now

240HP GR2403 motor graders equipment.

1.Energy-saving and noise-reduction: Low-speed engine transmission line is used, the specific point of the fuel consumption is low, energy saving and environmental protection; the transmission system is configured at low speed, the average fuel consumption is reduced by about 8%.


2.Powerful: Using Dongkang High-efficiency State III Variable Power Engine.


3.With load rotation: improve hydraulic system pressure, blade rotary force is greatly improved, high-frequency quenching gear ring, wear resistance and life expectancy, to achieve load rotation.


4.20%Efficient operation: Increase the displacement of hydraulic pumps and hydraulic motors, and increase the speed of cylinders by 20%.


ItemGR2403
Basic parametersEngine modelQSB6.7
Rated power/speed178kW/2000rpm
Overall dimension (standard)8970x2625x3420
Total weight (standard)17000 kg
Tire specification17.5-25
Ground clearance (front axle)430mm
Tread2156mm
Space of front and rear axles6219 mm
Space of middle and rear wheels1538 mm
Performance parametersForward velocity5,8,11,19,23,38km/h
Reverse speed5,11,23km/h
Tractive effort f=0.7587 kN
Maximum gradeability≥25%
Tire inflation pressure260kPa
Working system pressure20MPa
Transmission pressure1.3—1.8Mpa
Working parametersMaximum steering angle of front wheel±48°
Maximum slant angle of front wheel±17°
Maximum oscillating angle of front axle±15°
Maximum oscillating angle of equilibrium box±15°
Maximum steering angle of frame±27°
Minimum turning radius7.3m
Scrape knifeMaximum lift height400mm
Maximum cutting depth500mm
Maximum tilt angle90°
Cutting angle28°—70°
Angle of revolution360°
Length & chord height3965x610mm
Oil filling amountCoolant50L
Fuel tank280L
Engine24L
Transmission38L
Balancing box46L
Drive axle28L
Hydraulic oil110L
