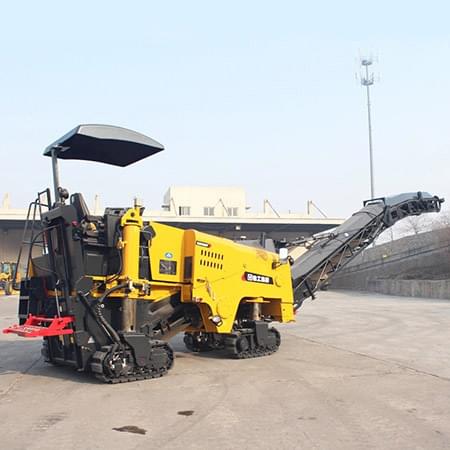

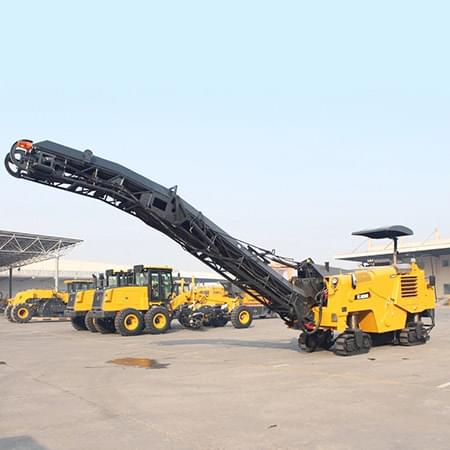

XCMG XM120F 1.2m asphalt road milling machine
XM120F milling machine is one of the main asphalt concrete road maintenance equipment, mainly used for large scale highways, urban roads, airports, freight yard, etc for renovation of asphalt pavement. One-time removal of entire concrete overlay. It can also be used for cleaning protuberance, oil layers, retieulation and vehicle tracks as well as road trench, tunnel excavation. cement road surface roughening and dislocation smothness.
The equipment features advanced performance, high efficiency, simple process, easy control of milling depth, flexible operation, good maneuverability and the old material recycling and utilization. It is an ideal equipment for pavement maintenance and renovation.

Performance and characteristic:
* Hydraulic driving milling drum has the obvious characteristics of stable milling and high efficiency.

* Compact three-wheeled machine with front-wheel drive .The advance speed is infinitely variable in both gear which can be suitable for the requirement of different working conditions.

* The front steering driving axie has large steering angle and small turming radius ,can mill along the manhole covers.

* The high-strength and high wear resistance imported cutter head and cutter rest have long service life and low construction cost.

* The imported hydraulic elements have high working reliability.

* Excellent welting milling performance with right rear leg which can be fast swung into the frame makes the milling drum attached to the road edge stone or wall for milling operation.

* Hydraulic handheld breakers and rumble strip equipment can be selected.


MODEL

Unit
XM120F
Engine
Engine model

QSC8.3
Rated power /speed
Kw/rpm
209/2100
Performance parameters
Operating speed
m/min
0-32
Travel speed
Km/h
0-5
Gradeability
%
80
Ground clearance
mm
≤300
Operating weight
Kg
21500
parameters
Max.milling and mixing width
mm
1200
Max.milling and mixing depth
mm
320
Number of tools

117
Milling drum diameter
mm
980
complete dimension(L*W*H)
mm
5900*2140*3000
dimensions
Conveyor(L*W*H)
mm
8200*1200*1500
Fuel tank
L
660
Hydraulic oil tank
L
120
Water tank
L
1400
