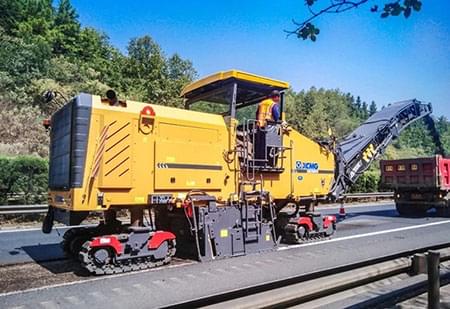

XCMG road construction machinery 1000mm asphalt concrete milling machine XM1003K

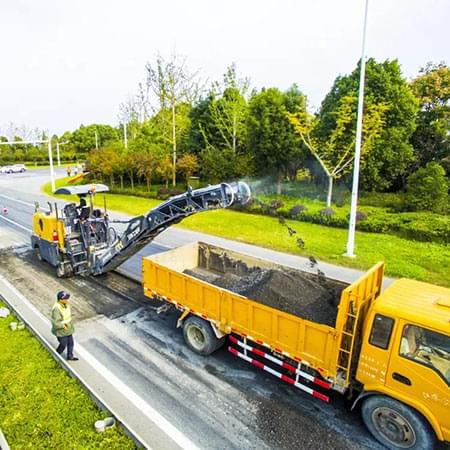

XM1003K road milling machine is a high-performance 1m-wide milling machine mainly used for the digging and renovation of asphalt concrete pavements in highways, downtown roads, airports, cargo yards, and parking lots.

Performance Characteristics:
* This machine is powered by Shangchai 162kW electronic injection engine is applied to achieve higher power reserve than domestic like products. With higher working power, this engine can be used to effectively handle the working conditions with harder material and higher milling depth.
* This engine conforms to the China-lll emission regulation to advocate environmental-friendly construction and reduce environmental pollution. With the fuel consumption at 40L/h under rated power, this engine features lower fuel consumption and better operation economy.
* The milling drum in diameter of 930mm is installed to achieve the 300mm maximum milling depth and remove the whole asphalt concrete pavement by single cycle.
* The 45m/min working speed is higher than the like products. Three working speeds are provided to achieve more accurate matching between working speed and working load.
* The milling drum is driven by mechanical belt to achieve higher drive efficiency than hydraulic drive.
* The super-high capacity water tank and fuel tank (860L and 450L respectively) guarantee longer continuous working time and reduce the down time.
* The intelligent sprinkling control technology is applied so that the sprinkling is turned off automatically at the stop of milling and is turned on automatically at the restart of milling to save the manual operation steps.


Item
Unit
XM1003K
Milling drum
Milling drum Milling width
mm
1000
Milling depth
mm
300
Tool spacing
mm
15/18
Number of tools

100/82
Rotor diameter with tool
mm
930
Engine
Model

SC9DK220G3
Cooling method Water cooling

Water cooling
Number of cylinders

6
Rated power/speed
kW/rpm
162/2200
Displacement
L
8.8
Rated power consumption
L
36.7
Comprehensive fuel consumption
L
12.3
Emission Standard

National Ⅲ
Electrical system
V
24
Box capacity
Box capacity Fuel tank
L
450
Hydraulic oil tank
L
130
Water tank
L
860
Driving performance
Driving performance Maximum operating speed
m/min
45
Maximum speed
km/h
8
Theoretical climbing ability
%
75
Ground clearance
mm
180
Tire
Tire Tire Form Solid Rubber Tire

Solid Rubber Tire
Front tire size
mm
645×300
Rear tire size
mm
645×300
Milling material conveying
Milling material conveyor Belt width
mm
500
Theoretical feeding capacity
m3/h
127
Transport size
Shipping Size Host Size (L×W×H)
mm
4837×2546×3745
Host size (right leg swings into the frame) (L×W×H)
mm
4837×2057×3745
Folding conveyor size
mm
7300×1085×980
Machine weight
Machine Quality Work
kg
16800
Front axle load (under working quality)
kg
6000
Rear axle load (under working quality)
kg
10800
