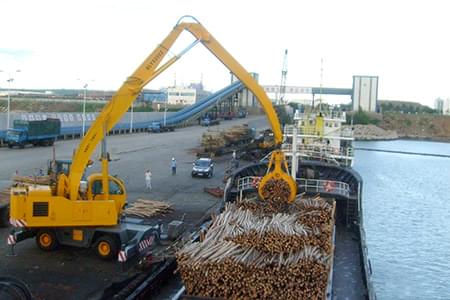

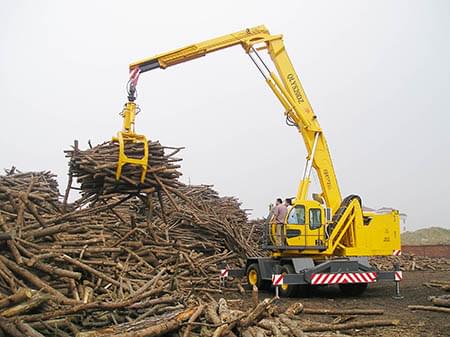

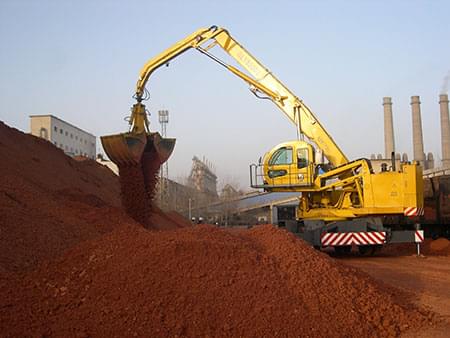

Wheeled Hydraulic Grab Crane QLYS20DZ
Parameter full crane
Item | Unit | Value |
Quality parameter | Driving state quality | kg | 27400 |
quality | 28300 |
Wheel loading | Front wheel loading | 14500 |
Real wheel loading | 12900 |
Driving parameter | Max.driving speed（Internal Combustion engie） | km/h | 15 |
Min.turning radius | m | 8 |
Min.earth clearance | m | 0.25 |
Parameter full crane | Full length | m | 6.5 |
Full width | 3.1 |
Full height | 3.1 |
Boom length（main boom+Vice boom） | 10~26 |
Max.Hoisting height | 25 |
Wheelbase | 3.2 |
Wheelbase | Real wheel | 2.3 |
Front wheel | 2.3 |
Motivate parmeter | Tyre specification | 12.00-20 |
| 8 |
Electromator | Power | kW | 45 |
Type |
| YB225M—4 |
Internal Combustion engie | Power | kW | 105 |
Type |
| YC6108ZG |
Technical parameter of driving state
Type | Item | Unit | Parameter |
Main parameter | Max.Rated hoisting weight | t | 20 |
Min.Rated amplitude | m | 3.0 |
Max.hoisting torque | kN.m | 600 |
Max.Hoisting height | Basic boom | m | 10 |
longest main boom | 25 |
Outrigger distance | longitude | m | 5.6 |
Cross direction | m | 5.4 |
Max.angle of atitude |
| 78° |
Min.angle of atitude |
| -1° |
Working speed | Max.steering speed | r/min | 3.1 |
Amplitude time | Fully raising boom | s | ≥50 |
Fully falling boom | ≥50 |
Lifting speed | Couple pump | m/min | ≥95 |
Outrigger extending and retracting time | Horizon | Extending simultaniously | s | ≤21 |
Retracting Simultaniously |
≤16 |
Vertical | Extending simultaniously | ≤25 |
≤21 |
Retracting Simultaniously |
Drving speed | Electromator | km/h | 0~5 |
Internal Combustion engie |
0~15 |
