  • Two-axle Three-axle Dropside Flatbed/Cargo Trailer/High-wall Trailer
  • Product category : Semi-Trailer
  • Brand : Two-axle Three-axle Dropside Flatbed/Cargo Trailer/High-wall Trailer
  • Product origin : CHINA
  • Delivery time : 1-90DAYS
  • Supply capacity : 1-500UNITS
  • Email : sales@xzunique.com
  • Send Inquiry Now

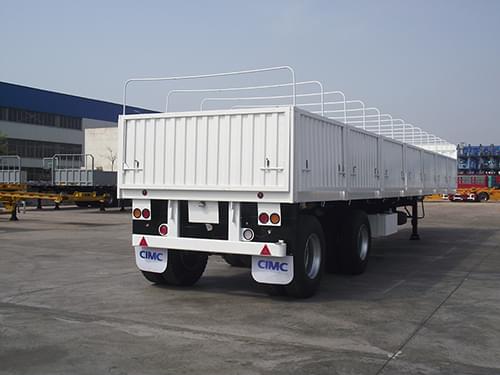

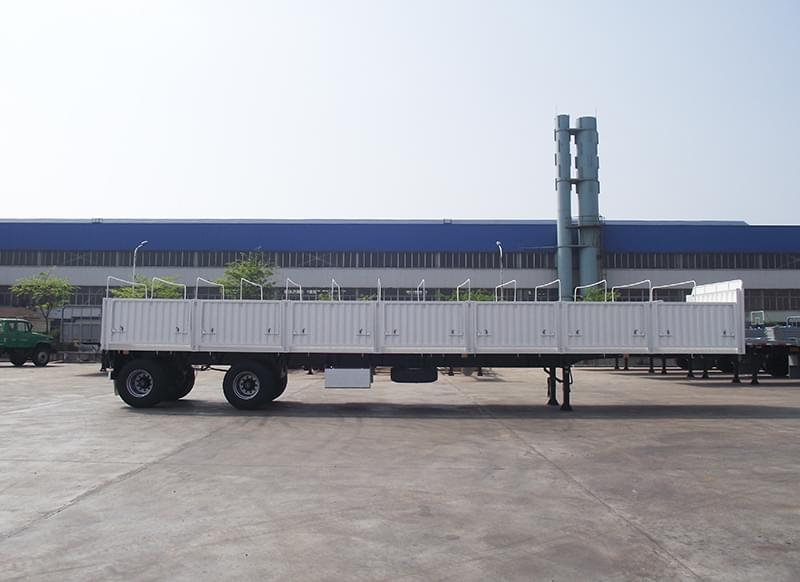

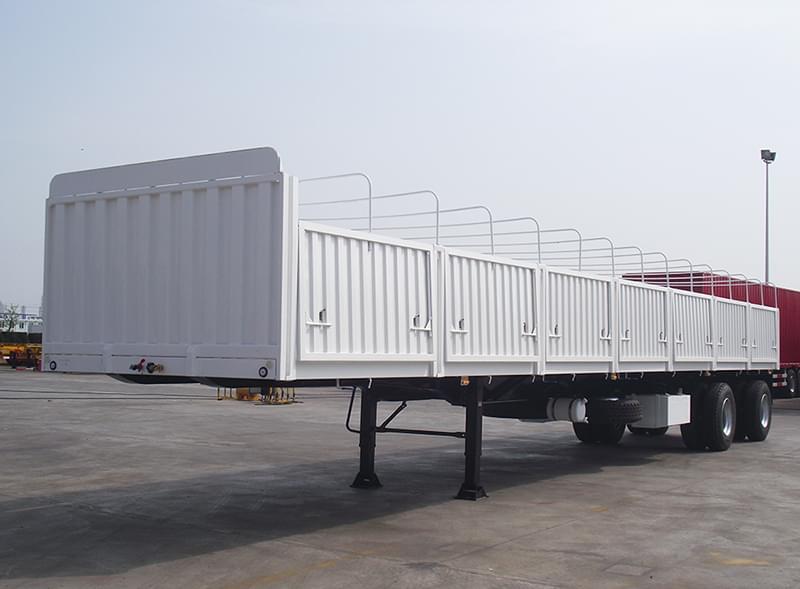

Two-axle Three-axle Dropside Flatbed/Cargo Trailer/High-wall Trailer

Dimension:

Length:Approx 14,500mm

Width:Approx 2,600mm (outside),2500mm(inside)

Height:Approx2,820mm@ unload

King Pin Location: Approx 1,400mm from the front face of the front bolster

Landing gear position:Approx 2,420 from the king pin.

Axle spacer:Approx 9,730mm+2,400mm

King Pin Height:Approx 1,200mm with the chassis level

Weight:.

Tare Weight(Tolerance 0~-4%): Approx 6,500 kg

Max. Payload:Approx 31,000 kg

Gross Vehicle Weight:Approx37,500 kg

Steel Structure:

Platform: flat steel floor, the thickness is 2mm.

Side wall:height is 800mm, 1.2mm thickness, CIMC standard wave surface. Height of front wall is 1300mm. Tarpaulin support is 500mm high, front support is 200mm high.

OEM Parts Configuration:

King Pin:2” bolting king pin. Brand: JOST.

Landing Gear:2 speed road side winding with sand shoe, Lifting capacity 24T. Type:

JOST C200T, Made in China.

Suspension: Air suspension within two axles. The rear axle can be lifting. No steering system

Axles: Φ127 round axle with 11.5 tons capacity. Brake: S420x180, Wheel fitting

10XM22X1.5 ISO/ PCD285/220. Type: Fuwa. Made in China.

Rims:9.0-22.5, 10 Holes ISO, Steel Standard 8 pieces+2pieces

Tires:12.00R22.5, 8 pieces+2pieces . Triangle or other Chinese famous brand.

Brake System: Dual air brake system, WABCO relay emergency valve, none ABS system.

Brake chamber:Type 30/30 on the axles.

Electrical System:24 volt lighting systemwith modular wiring harness,7 way ISO receptacle infront of the front bolster, norms NO.1185. Chinese standard .
