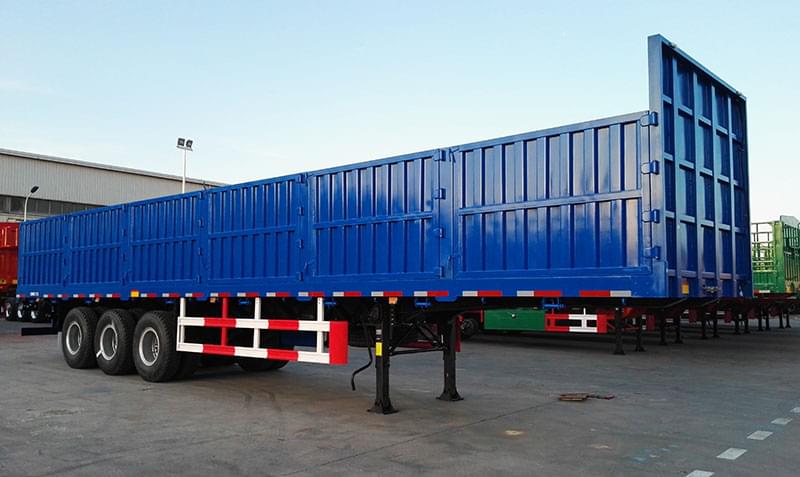

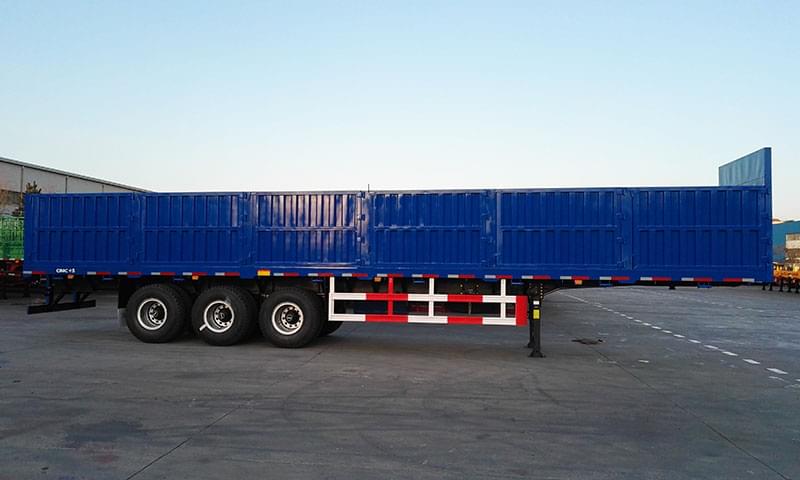

Three-axle Dropside Flatbed/Cargo Trailer with 1.6m Side-wall

Type

13.41m High wall semi-trailer with tri-axle

Model

ZJV9810CLX

parameter

dimension(mm)

length×width×height:13410x2495x3500mm excluding accessories

king pin setting(mm)

1250 from the face of front bloster

Fifth wheel height(mm)

1205

axle space(mm)

6850+1310+1310

tare weightkg

11,500(+/- 3%)

payload kg

70,000

fabric

main beam(mm)

550submerged arc welding

flange and  web(mm)

16/8/20

side rail

180mm hot roller “C” type channel.

cross member

100mm hot roller C channel,

floor

4mm Checker plate

Front wall

2000mm high steel wall assembled

Side walls

1372mm high side walls,6 pcs per side

Rear wall

1372mm high rear wall, the wall can open according to the bottom hintchs

Winche&Hook

8 winches and 10 hooks on each side of the platform

Mud guard

Upright type, steel;

Side guard

Steel, standard type;

Tool box

Steel,1 set

OEM

landing gear

SAF HOLLAND HLD30 19"

kingpin

JOST KZ1412, 3.5 inch

brake system

Dual lines air brake system,T30 on front Axle, T30/30 on Rear two Axle, WABCO brake valve ,without ABS;

Elec system

24V ISO1185 standard modular harness ,all lamps are LED lamp

suspension

mechanical suspension with 9-leaf spring

axle

FUWA 16T F2462BII

tire

12.00R20-18PR ,13 pcs per chassis. Linglong

rim

8.5V-20, 13 pcs per chassis

spare tire carrier

2 units per chassis

paint

polyurethane

Primer coat+ top coat after sand blasting, color according to Customer’s  requirement, Kansaibrand

others


“LONG VEHICLE” sign on the rear end.

Standard export Logo and stickers


Product Tag
