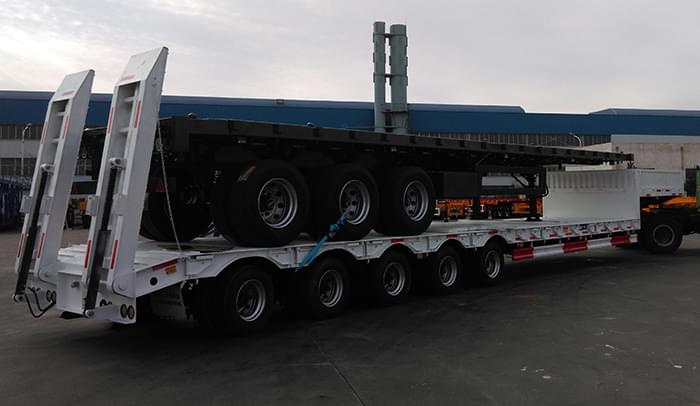

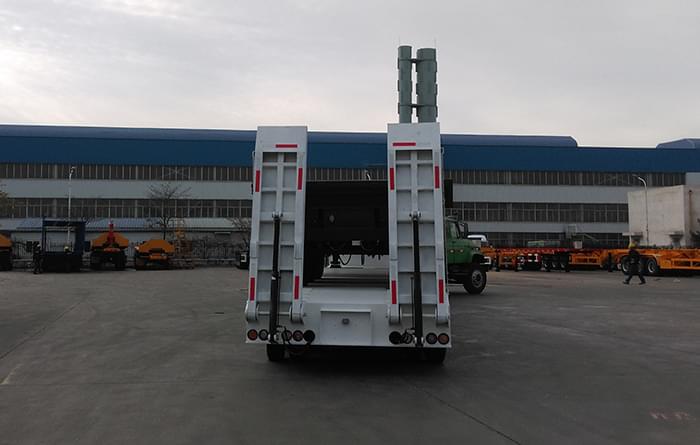

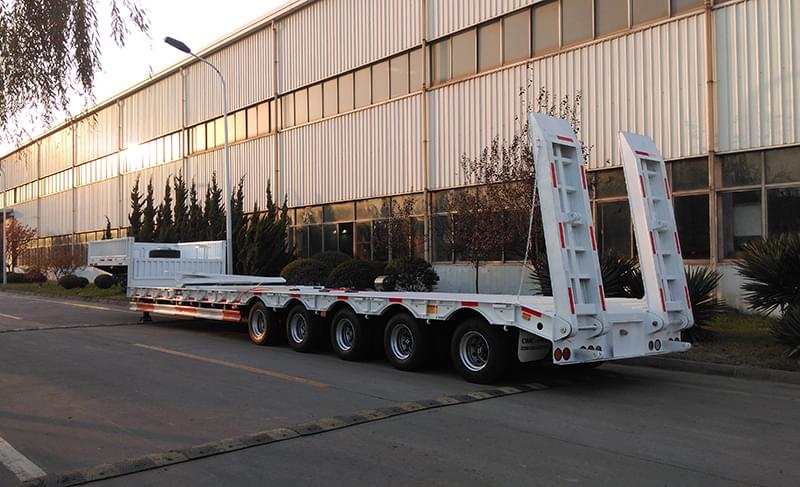

Low Bed Trailer with 5 axles

Dimension & Weight(approx):

Total Length: 16590 mm±10mm

Width: 2,500 mm can be extended to be 3000mm.

Length of Loading Platform:12,300mm

Height of Loading Platform: 1,000mm ±10mm@ unload

Tare Weight (Tolerance 0~-5%):  大约approximate 22,000 kg

Payload:80,000kg

The above dimension will be adjusted according to the tractor specification. )

OEM Parts Configuration:

King Pin: 3.5” exchangeable king pin, Supplier & type: JOST KZ1412.

Landing Gear: 2 speed road side winding with sand shoe. Lifting capacity 24T.Type: JOST A400T, Right operating. Made in China.

Suspension: Air suspension.

Axles: 13 tons capacity. Total 5 axles and The rear two axles are steering axles. Angle of steering ≤19°. Option by the factory.

Rims: 6.75*17.5, 10 Holes ISO, 20 pieces. Made in China.

Tires: 235/75/R17.5, 20 pieces, Option by the factory.

Brake System: Dual air brake system, WABCO relay emergency valve, none ABS brake system.

Brake Chamber: 30/30 type on rear axles, 30 type on front axle

Electrical System: Complete 24V installation with modular wiring harness. 7 pole plug placed at front in accordance to ISO, norms NO.1185.

Side Lights: reflectors (orange);

Rear Lights: direction indicators (orange) /brakes (red)/rear warning (white).
