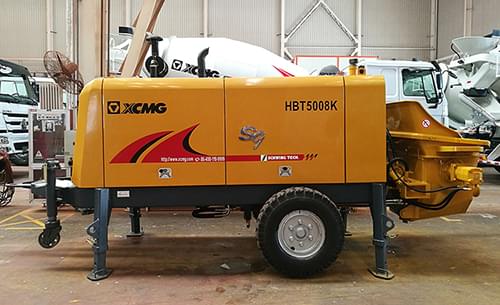

XCMG HBT5008k 82 kw trailer mounted concrete pumpschwing concrete pumps.

Concrete pump is a construction equipment which conveys concrete by pressure through pipeline. It is equipped with special pipeline. It can continuously complete horizontal and vertical conveyance of concrete along pipeline. It is an ideal kind of existing concrete conveyance equipment.

It combines the production of ready-mixed concrete with pumping construction and uses coagulation. The soil mixing truck carries out intermediate operation, which can realize continuous pumping and pouring of concrete. It is used for conveying concrete in large concrete projects.


item

parameters

unit

Shape size

5623×1884×2606

mm

Whole machine quality

5035

kg

Concrete conveying capacity

50

m3/h

Maximum output pressure

8

Mpa

Conveying distance (vertical / horizontal)

100/400

m

Hopper volume / feeding height

0.6/1320

m3/mm

Concrete slump

80-230

mm

Concrete delivery bore diameter / stroke

180/1400

mm

Active engine-diesel engine

Model

WP4G110E220


Rated power

82

kw

Rated speed

2200

r/min

Hydraulic system

type

open


Hydraulic system pressure

32

Mpa

Main oil pump

Model type

A11VLO130


Rated working flow

224

L/min

Pump cylinder diameter / stroke

90/1400

 mm

 Hydraulic tank volume

250

 L
