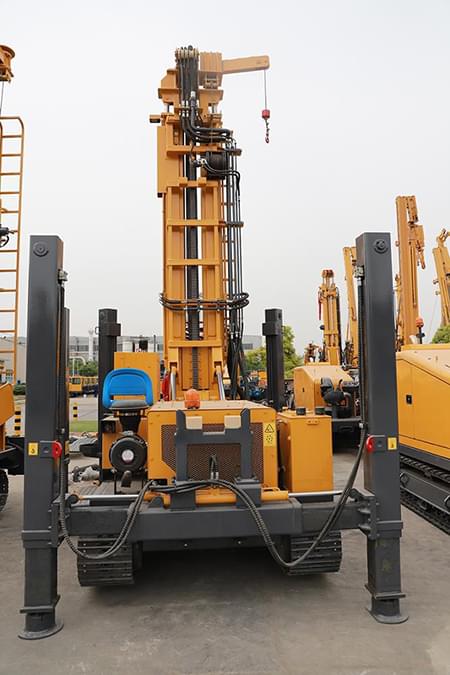

XCMG 700m Deep Hydraulic Water Well Drilling Rig XSL7/350.

XCMG XSL series deep(water) well drlling rig uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency.


XSL7-350 700m deep(water) well drlling rig ,Reasonable overall layout uses the tractor-mounted or all terrain chassis for transportation with good maneuverability. Very flexible in difficult roads.

It can be widely used in many fields such as resource exploration of hydrology wells, coalbed methane, shallow layer of shale gas, terrestrial heat, etc, and can also be used for coal-mine gas exploitation or salvage work.

The top-mounted driving head principal shaft has a great drift diameter,which is suitable for many kinds of construction work such as slurry drilling, air drilling, and air foam drilling, meeting the demands of well-drilling in different terrain strata.


Dimension(L*W*H):5150*3250*10500mm

Weight:14000KG

Certification:CE, ISO, SGS, BV,TUV, ETC

 Warranty:1 year

 After-sales Service Provided:Engineers available to service machinery overseas

 Drilling depth:700(dia.102)m

 Max. diameter of working floor:dia.500mm

 Max. lifting capacity:350KN

 Max.feeding capacity:150KN

 Stroke:7000mm

 Engine:CUMMINS QSB5.9-C210

 Drilling type :   continuous flight auger (CFA)

 Applications: multifunction, for wells

 Mobility: crawler

 Other characteristics: hydraulic

 Drilling diameter: 500 mm (20 in)

 Drilling depth: 700 m (2296'07")
