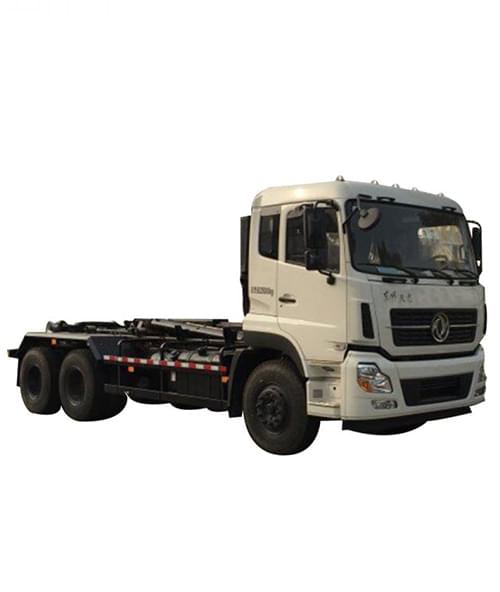

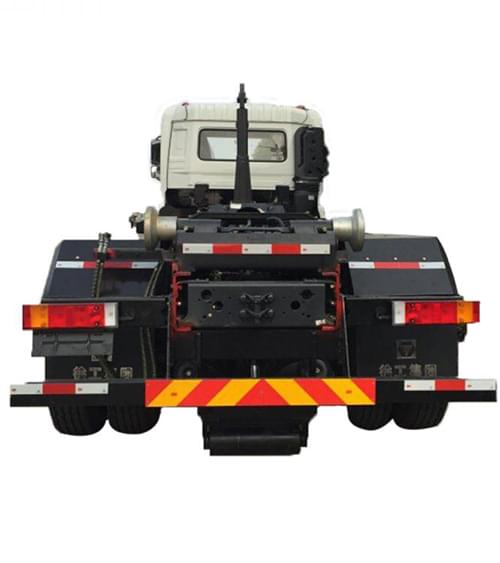

XZJ5250ZXXD5 Detachable ContainerGarbage Truck

1. The Company is one ofnational industrial standard drafters, making sure the technologicaladvancement and the leading level. Besides, the Company is armed with anexperienced R&D group and has lots of loading & unloading devices andextensive experience in automobile repacking and design. The product isbeautiful, safe and reliable. The Company is the only enterprise with thequalification of loading and automobile repacking in China. Its quality is at atop-ranking level in China.

2. The structural styleincludes slide arm and swing arm. It is featured by flexible and stableoperation. At the same time, it also reduces the height of motion curve.

3. The mode of springself-reset is adopted for the (self-dumping) front lock. It is featured bysimple, stable and reliable operation and high integration of action functions,reducing the probability of mis operation.

4. (Self-dumping) rear lock isadopted for the hydraulic tank, with a simple and reliable structure and stronguniversality. A stroke valve is added to the hydraulic pipeline, in order tolimit the operation of sliding arm (swing arm), resulting in higher reliabilityof the product.

5. Internationally advanced 3Ddesign software Pro ENGINEER is used as the development tool of the product. Inthe parts design phase, we began to consider optimal design. We analyzed thestress of every part. The safety factor is higher than 1.5 for all structuralparts. Meanwhile, Q690 high-strength steel plate is used for all key structuralparts. Thus, the strength of our products can reach the design requirements. Onthis basis, the weight is also the lightest for our products, remarkablyincreasing the load capacity of the vehicle.

6. An idler wheel support isadded to the auxiliary frame. When the tank is sliding on the supportingsurface, the sliding rigid model of the tank and the supporting seat is changedinto rolling friction, reducing the wear at the tank bottom, and improving theservice life of the tank.

7. All oil cylinders arepurchased from well-known domestic brands. All sealing rings are imported.Well-known domestic plunger hydraulic pump is selected. The working pressure isas high as 30MPa. It is featured by stable and reliable working, reducing thedamage to the pump caused by pressure peak and guaranteeing the stability ofthe hydraulic system.

8. An electromagnetic balanceoverflow valve is added onto the main oil cylinder, so as to avoid acceleratedsliding under the dead load of the tank and the cantilever crane when the mainarm takes back and is about to be put horizontally and to realize safe andstable operation. Moreover, it also avoids the impact between the tank and theupper part of drag arm hook as well as the damage to the automotive framecaused by tension of the main oil cylinder.

9. Macromolecularoil-containing nylon is adopted for the sliding block on the sliding arm, whosefriction coefficient is lower than 50% of ordinary nylon. However, its abrasiveresistance is 10 times of ordinary nylon, remarkably reducing the number ofmaintenance times caused by nylon wear.

10. All operations can befinished in the driving cab. It is simple and convenient. Besides, severaldetecting points are increased, resulting in interlocking of various actionsand making sure the action safety and reliability.

11. Rear support underdiversified structural styles can be allocated. It can be matched with moredifferent chassis. Various structural styles are provided with a detectorswitch, so as to make sure effect working of the rear support and properlyprotect the cross beam at the chassis tail.


The vehicle model

XZJ5250ZXXD5

Top model

LBH20B

Chassis model

DFL1250A13

Energy model

ISDe245 50

Emission standard

GB17691-2005(NationalⅤ),GB3847-2005

Total mess

25000kg

Curb mess

11680kg

Overall dimension

8350×2500×3140

Rated payload

13190,13125

Wheelbase

4350+1350mm

Front/rear

1480/1170mm

Hook to rear roller distance

5300 mm

The maximum inclination

≥49°

Hooking time

≤60 s

Discharging time

≤60 s

Maximum pressure of hydraulic system

28MPa

Operation manner

Pneumatic, electric, manual.

Hook capacity

20000 kg

Height of hook center

1570 mm

Swing/slip.

1100mm
