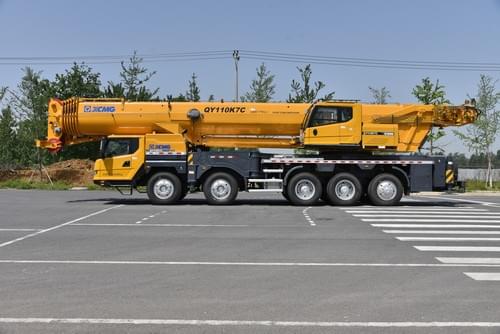

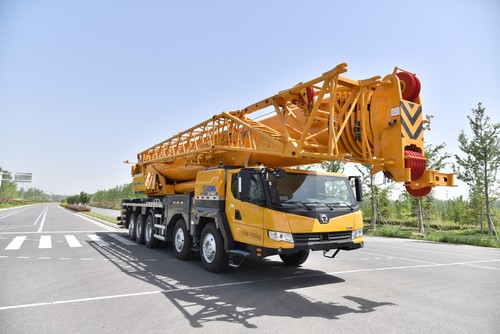

Crane QY110K7C is a five-axle, three-wheel drive, three-turn, double-fuel tank design.Weichai 460 horsepower high-power engine, equipped with 12-speed automatic transmission, classic low-speed high-torque power transmission system, more powerful in power!

Performance: original new single-cylinder bolt telescopic system, seven-section main boom, full-extend boom length 75m, full-extend boom 16m maximum lifting weight 9t, comprehensive lifting performance 5-10% ahead of the same level, it is a hundred-ton seven-section boom Hanging high weapon!

Low-speed mode: flexible site transfer.

High-speed mode: safe, stable and reliable driving.

It also has multi-mode cylinder-controlled steering technology. The fifth axis adopts a special cylinder-controlled steering system for truck cranes: when driving at high speed, the five-axes are automatically locked, which has good driving stability and prevents tail-flicking; when driving at low speeds, the fifth axis follows up Steering, small turning radius, maneuverability, minimum turning diameter 23m.

XCMG truck crane QY110K7C three-, four-, and five-axle series drive, reducing transmission paths, low power loss, and higher transmission efficiency!

Although QY110K7C is a one-hundred-ton product, it can carry all outriggers, supporting foot plates, spare tires, and main hoisting wire ropes. It is easy to drive on the road and can carry hooks, jibs, 12t counterweights and counterweights for short-distance and low-speed transitions. Reasonable placement, good reliability of the whole vehicle, easy transfer and efficient operation!

Its relatively independent dual fuel tank design, which can be switched by the button in the cab, increases the endurance by 10%. The fuel tank can be filled with diesel of different grades. When the temperature is low, use low-grade diesel, and when the temperature is high, switch to high-grade diesel, which is economical.

Control room: Full man-machine engineering work space design, 10.4 inch true .
