QY70K-I truck crane XCMG brand hydraulic mobile crane hot sale
1.  Full dimension flat-head cab for chassis, all covered walking surface, double H-type outriggers and a fifth jack are available, as well as 360°ºoperation of boom, power system with various options.
2.  It has the longest boom compared to the same class crane boom. Five-section boom of oval cross-section with special sliders, aligning device and high-tension steel plates contribute to smooth telescoping, reliable alignment, light boom weight and strong lifting capacity.
3.  Bi-part jib, comprising one lattice section and one box section.
4.  Double cylinder plus ropes for boom telescoping. Thick cable and bearing are imported parts and have reliable performance.
5.  Hydraulic transmission for both superstructure and chassis. Each mechanism speed can be regulated steplessly, so smooth movement and easy operation can be gained.
6.  Main and auxiliary winch systems can get oil supplied by single pump or double pump. The high efficiency motor of variable displacement has the features of lower speed with heavy load and higher speed with light load.
7.  Slewing system with planetary reducer and constant closed-type brake has free sliding function. Straight-tooth slewing bearing activated by a motor and a buffer valve fitted in the hydraulic system contribute to free sliding and reliable inching control.
8.  Founding counterweight suspended highly in the rear of the machine makes more space for slewing operation (standard counterweight of 4t +optional counterweight of 1t).
9.  Equipped with perfect safety devices: load moment indicator (LMI), hoist limit switch, outrigger pinning device and electric level gauge. And illuminators facilitate night operations.
10. Streamlined integrated operator’s cab with full view, equipped with air-conditioner, roll-up sun shield, shock-absorbing adjustable seat, and soundproof and heat insulation.
11. Lower center of gravity, good stability, high travel speed and manoeuvreability facilitate fast job site transfer.
12. Excellent welding technology for structural members. Welding robot with advance process used for key welding make reliable quality products.

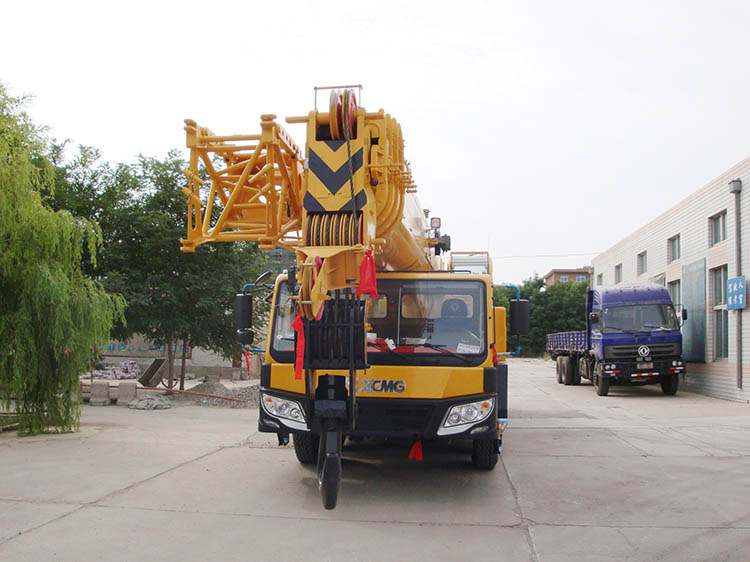

Xcmg QY70K-I truck crane


Ⅰ.Main Technical Data Table in Travel configuration

DescriptionUnitParameter value
Overall lengthmm13900
Overall widthmm2800
Overall Heightmm3575
Axle base1st ,2nd axlemm1470
2nd ,3rd axle4105
3rd ,4th axle1350
Wheel Basemm 2304+2075
Total vehicle mass in travel configurationkg43000 (not including auxiliary counterweight of 1t)
Axle load   1st and 2nd Axlekg17000
3rd and 4th Axle26000
Engine Model
Engine rated powerkw/(r/min)276/2200
Engine rated torqueN.m/(r/min)1500/1400
Engine rated rotational speedr/min2100
Max. travel speedkm/h80
Min. steady travel speedkm/h3
Min. turning diameterm24
Min. turning diameter at boom tipm29
Min. ground clearancemm327
Max. grade ability%40
Approach angle°19
Departure angle°11
Braking distance (at 30 km/h, full load )m≤10
Oil consumption per 100kmL45

Ⅱ.Main Technical Data Table for Lifting Operation

Max. total rated lifting capacityt70
Min. rated working radiusm3
Turning radius at turntable tailmm3550
Max. load momentBase boomKN.m2303
Fully-extended boom1129
Fully-extended boom + Jib580.2
Outrigger spanLongitudinalm6.1
Hoist heightBase boomm11.8
Fully-extended boom44.2
Fully-extended boom + Jib59.4
Boom lengthBase boomm11.6
Fully-extended boom44.5
Fully-extended boom + Jib59.5
Jib offset angle°0, 15, 30
Time for boom raisings60
Time for boom extending fullys80
Max. slewing speedr/min2
Telescoping timeFully extendeds150
Fully retracted100
Outrigger extending and retracting timeOutriggerExtendings30






Hoisting speedMain winchNo loadm/min130

Full load 75
(single lineAuxiliary winchNo load108

Full load 98
Exterior noise leveldB (A)≤122
Noise level at seated positiondB (A)≤90
